Key advantages

• Fast and easy replacement thanks to a pre-mounted frame
• High transparency ensures stable UV light transmission
• Adapted for fast resin 3D printing
• Precisely compatible with the original resin vat
• Simple installation without complex film tensioning
• Optimal thickness ensures stable layer separation

Technical specifications

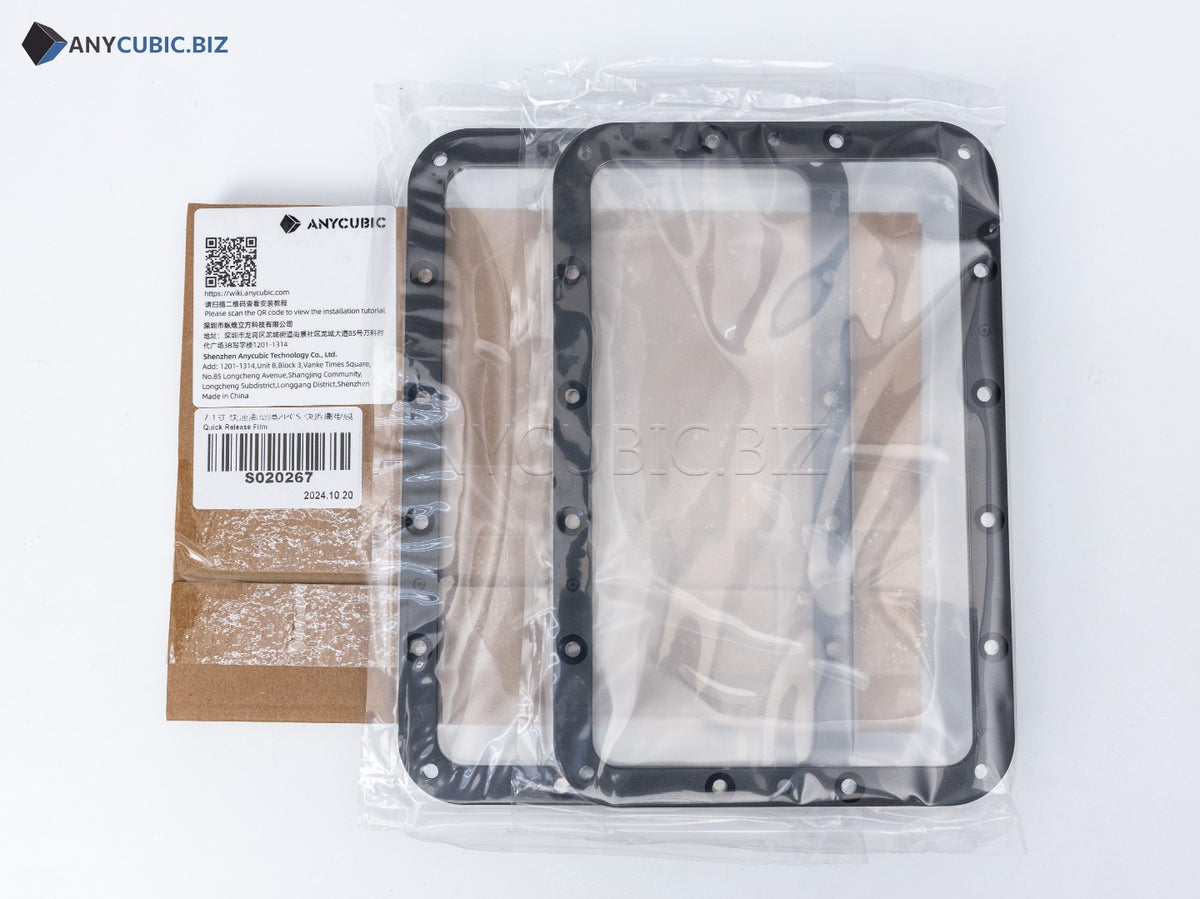

• Type: Quick-change ACF film with frame
• Film dimensions: 215 × 145 mm
• Thickness: 0.15 mm
• Quantity: 2 pcs
• Suitable for: 7.1-inch LCD screen
• Material: ACF film
• Compatible resins: 405 nm photopolymer resins

Product description

The ACF film is mounted at the bottom of the resin vat and helps ensure stable layer separation during printing. The special surface of the ACF film reduces the load on the printed model and supports, making it ideal for fast resin 3D printing. The pre-mounted frame simplifies film installation and maintenance.

Important: This product is not an LCD screen protective film or a resin vat.

When should the film be replaced?

• When scratches appear or the film loses transparency
• When printing quality deteriorates
• When the film surface is damaged
• When layers begin to separate unevenly
• After prolonged and intensive use

Compatibility

• Anycubic Photon Mono 4 Ultra

Installation recommendations

• Completely clean the resin vat before installation
• Do not touch the working surface of the film with bare hands
• Install the film in a dust-free environment
• Do not use sharp metal tools

Maintenance tips

• Clean only with a soft, lint-free cloth
• Do not use abrasive materials
• Protect from contact with sharp objects
• Store the film in its protective packaging

Frequently asked questions

Is this film compatible with other printers?
No, it is specifically designed for the Anycubic Photon Mono 4 Ultra printer.

Is this an LCD screen protective film?
No, this is an ACF film for the resin vat.

Is it suitable for fast printing?
Yes, the ACF film is adapted for fast resin 3D printing.

Does the film need additional tensioning?
No, the film is already mounted in the frame and ready for quick insertion.
